Welded Panels
Temporary fence is used where building a permanent fence is either impractical or unneeded.Temporary fencing is used when an area needs barriers for the purposes of public safety or security, crowed control, theft deterrent, or equipment storage.
Application
· Commercial Construction Sites
· Domestic Housing Sites
· Pool construction
· Sporting events
· Special events
Spcification
|

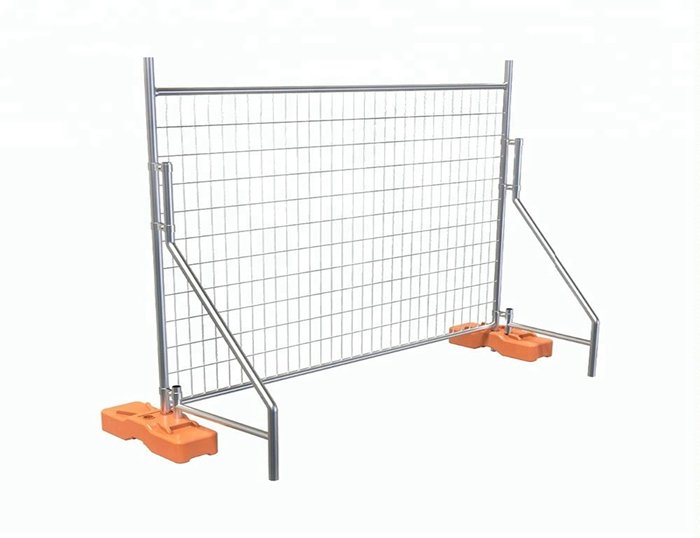

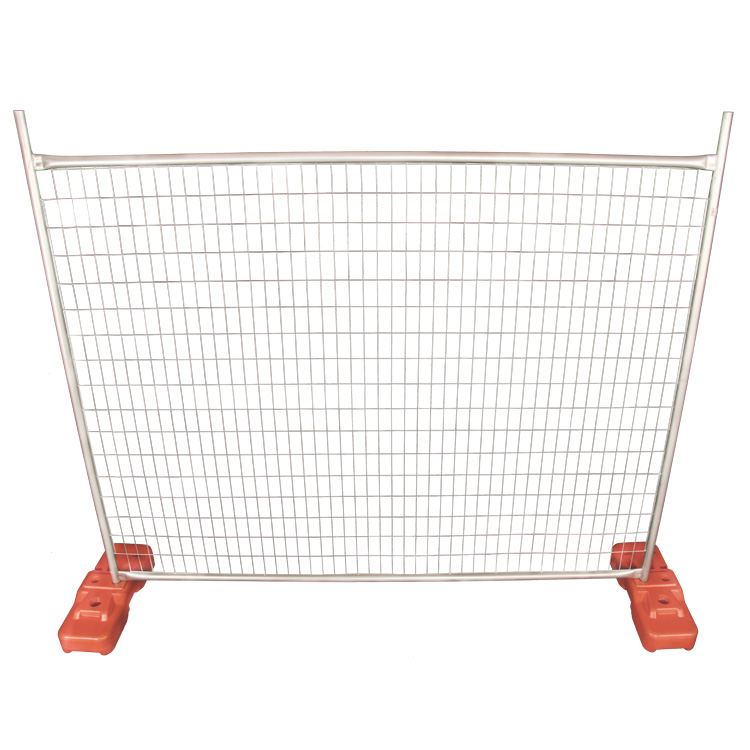

Detail of Temporary Fence Panel for Australia and New Zealand |
|
|
Panel Size(mm) |
1800(H)*2100(L),1800(H)*2400(L), 2100(H)*2400(L) |
|
Opening(mm) |
50x100 / 50x150 / 50x200 /60*150 / 75x150 |
|
Wire Dia.(mm) |
3 /3.5 /4 mm |
|
Panel Frame(mm) |
Φ32,Φ38 ,Φ42,Φ48 Thickness :1.2, 1.5, 1.6 ,1.8,2.0 |
|
Stay |
1500mm,1800mm height |
|
Feet/Block |
Plastic feet600*220*150 or steel feet |
|
Clamp |
Pitch 75mm or 100mm |
|
Finished of Panel |
hot-dipped galvanized, galvanized then Powder coated,galvanized material welded then paint welds |
|
Note: The fence can be customized according to your required if above specification is not satisfied with you. |
|
Surface Treatment Type
· hot-dipped galvanized
· galvanized then Powder coated
· galvanized material welded then paint welds
· Color range:you can choose what color you request. Other colours are available on request.
The powder material can make strongly resist the corrosive and ultraviolet radiation. the fence long life is more than 10years.
|
Suface Type |
Min |
Max |
|
Hot dipped galvanized |
50g/m2
|
650g/m2
|
|
Powder coating |
60μm |
120μm |
Our Advantage
· Advance machine for this fence,PVC coated line,powder coating line
· All part do in our factory,quality control and delivery time is best
· If need,free design,free sample can be provide
· We have injection machine to do the block by ourself
· 18years factory,11years export experience
