Superior Budget-Friendly Chain Link Fence for All Your Demands

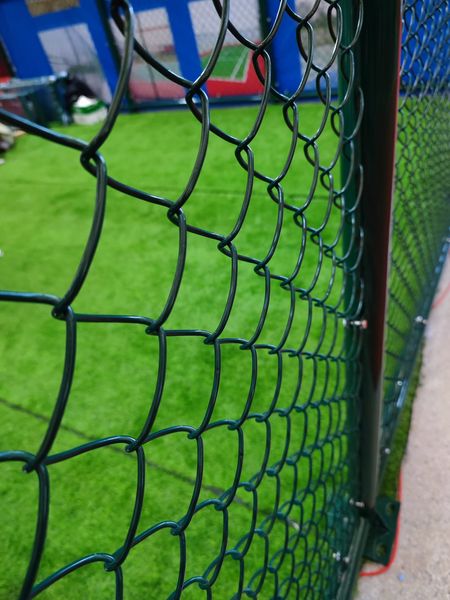

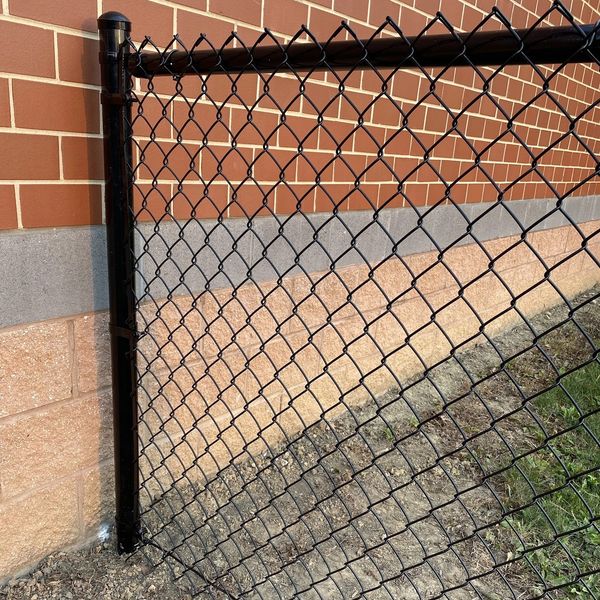

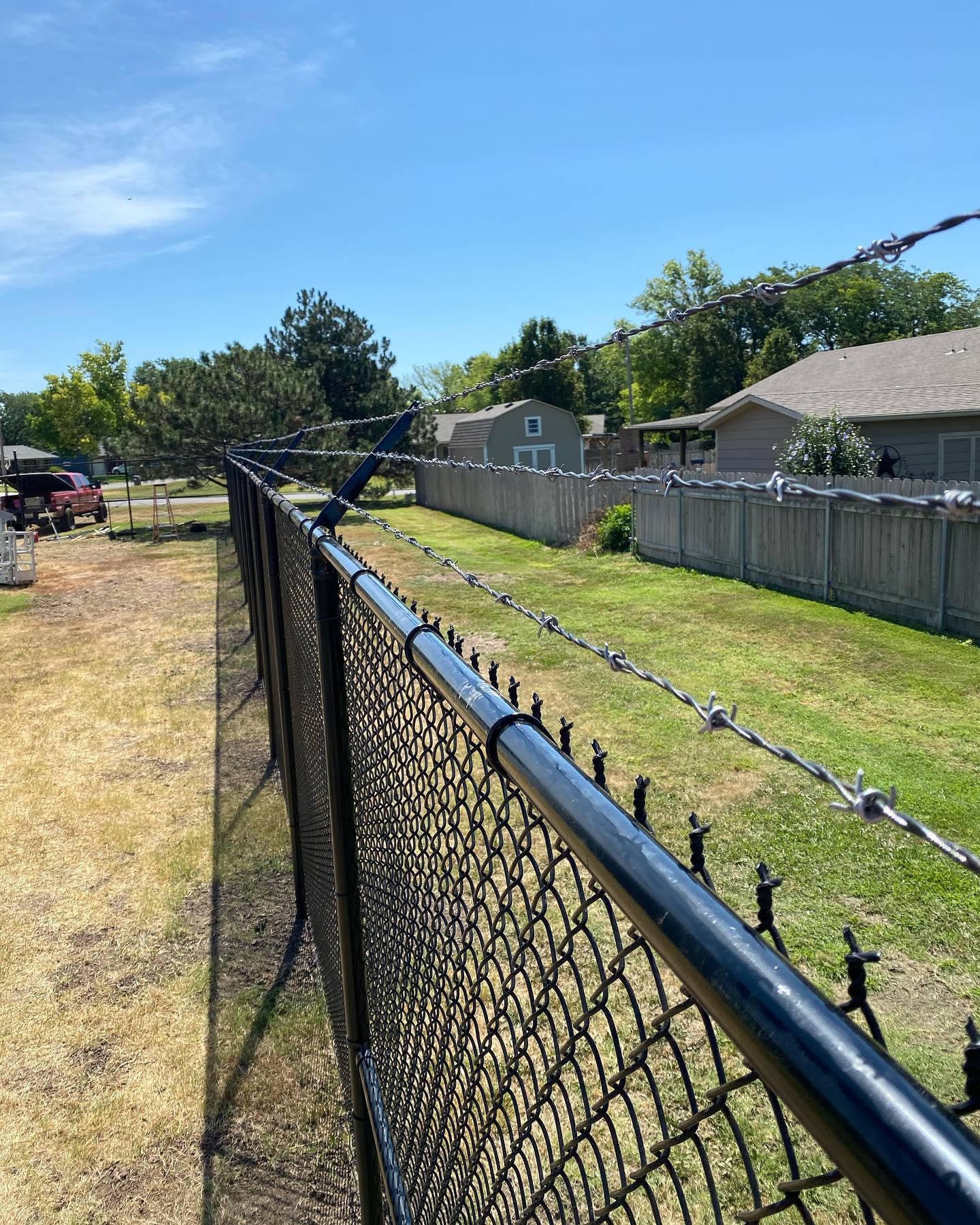

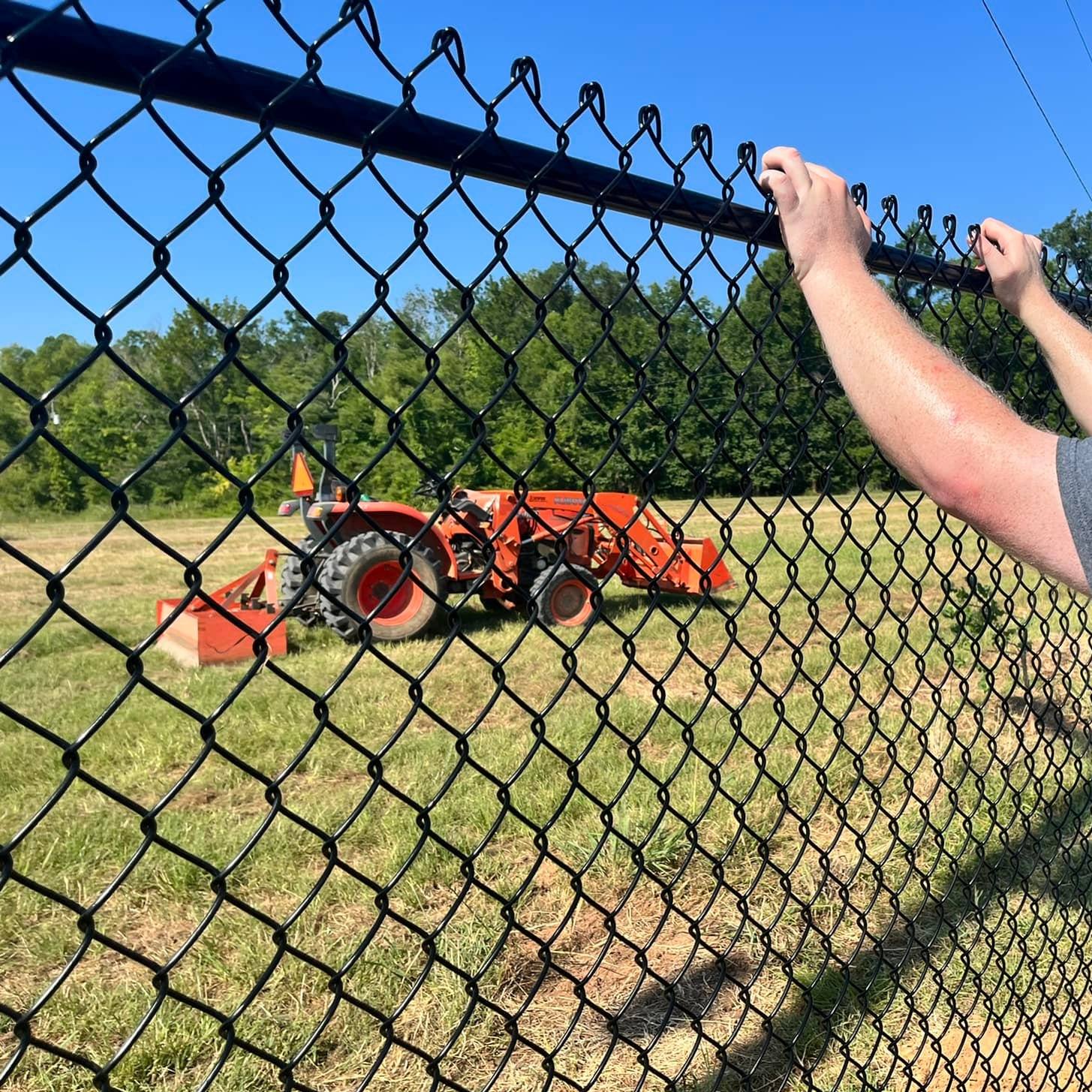

Chain link fence, also known as cyclone fence, hurricane fence or diamond mesh fence, is a type of woven fence usually made of galvanized or PVC coated steel wire. The wires are woven together to form beautiful diamond patterns. It offers a cost-effective solution for residential and commercial applications. Typically, the shorter heights are commonly selected for residential uses while the taller heights are most often for commercial uses to provide more security. Besides, it is a great option for road, railway, airport fencing, equipment and facilities protection, pet and small animal raising as well as zoo fencing.
Galvanized and green chain link fences are the most popular chain link fence across the world. Other colors are available upon request.
|
Mesh opening (D) |
1'' |
1.5'' |
2'' |
2-1/4" |
2-3/8'' |
2-1/2" |
2-5/8" |
3'' |
4'' |
|
25 mm |
40 mm |
50 mm |
57 mm |
60 mm |
65 mm |
70 mm |
75 mm |
100 mm |
|
|
Wire diameter (C) |
18 Ga. – 13 Ga. |
16 Ga. – 8 Ga. |
14 Ga. –6 Ga. |
||||||
|
|
1.2–2.4 mm |
1.6–4.2 mm |
2.0–5.0 mm |
||||||
|
Width (B) |
50–100 m (or more) |
||||||||
|
Height (A) |
0.5–6.0 m |
||||||||
|
Round post & rail diameter (F) |
32 mm, 42 mm, 48 mm, 60 mm, 76 mm, 89 mm; thickness: 0.8–5.0 mm |
||||||||
ETension Bar:25.0 mm × 5.0 mm
GClamp:metal clamp
HPost Cap:metal rain cap/anti-UV PP cap
Notes:
All colors are available in Ral;
Other materials and specifications are available upon request.
